Thorn 96637163 CONTUS basicDIM Wireless/Sensor MSENS PIDA MC BC CONT WH

Artikelnummer: 96637163 Thorn-96637163_9010757198319
Hersteller: Thorn
EAN: 9010757198319

UVP: 785,40 €

550,96 €

inkl. 19% USt. , zzgl.

lieferbar
Lieferzeit : 1-2 Wochen

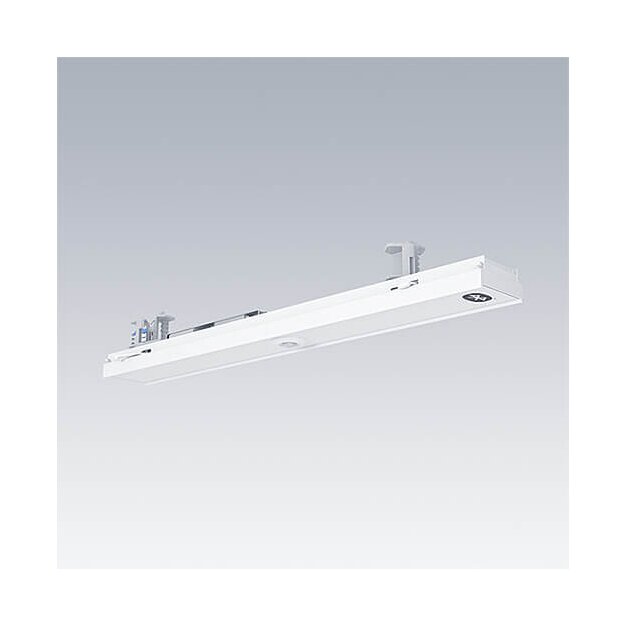

CONTUS module with integrated basicDIM Wireless (Bluetooth(C) CASAMBI) radio module and multi-sensor for motion detection and ambient light detection. (TRIDONIC MSensor G3 10dpi) Optimized for industrial, education and office applications. Motion detection via PIR technology. Standard light measurement between 5 and 2000lx possible, min. value can be reduced to 0.5lx. CONTUS module finish in white. For sensor heights up to 8m. Detection radius for movement at 8m mounting height 4.5m. Detection radius for light at 8m mounting height approx.4m. With included shield to reduce the PIR detection range by 120°, the shutter has no effect on the light measurement. Only one basicDIM Wireless (Bluetooth(C) CASAMBI) may be operated per DALI circuit/rail. Local control function: CONTUS rail can be controlled by basicDIM Wireless (Bluetooth(C) CASAMBI) module with multi-sensor according to daylight and motion without additional central control unit. If several sensors are used, the lowest measured value of the light sensors is used, the movement messages are evaluated in total. As soon as no connected sensor detects movement, absence is detected. Permissible radio distance up to 15 m between individual basicDIM Wireless radio modules in other luminaires or CONTUS BC inserts. One MSENS PIDA MC BC CONT module can control a maximum of 15 luminaires via DALI broadcast. Additional MSENS sensors (without basicDIM Wireless modules) can be used on the CONTUS rail. This reduces the number of controllable luminaires. (2 sensors - 11 luminaires / 3 sensors - 6 luminaires / 4 sensors (max) - 2 luminaires) Please refer to the installation instructions for further details. Sensor lens consists of polyethylene (PE), sensor housing consists of polycarbonate (PS). ambient temperature: 0°C to +45°C Weight: 0.35 kg

Weitere Informationen

Hersteller-Farbe:	Weiß
Produktgruppe:	Elektrisches Zubehör/Ersatzteile für Leuchten
Farbe:

Technische Daten und Merkmale zu Thorn 96637163 CONTUS basicDIM Wireless/Sensor MSENS PIDA MC BC CONT WH:

Art des Zubehörs/Ersatzteils	Bewegungsmelder
Farbe	Weiß

Herstellerinformation

Zumtobel Group Deutschland GmbH
Grevenmarschstr. 74-78
32657 Lemgo
Deutschland
info.de@zumtobelgroup.com

⚠ Sicherheitsinformation

Installation von nicht steckerfertigen elektrischen Geräten nur durch Personen mit einschlägigen elektrotechnischen Kenntnissen und Erfahrungen!
Für weitere Informationen zum Installationshinweis klicke hier.
