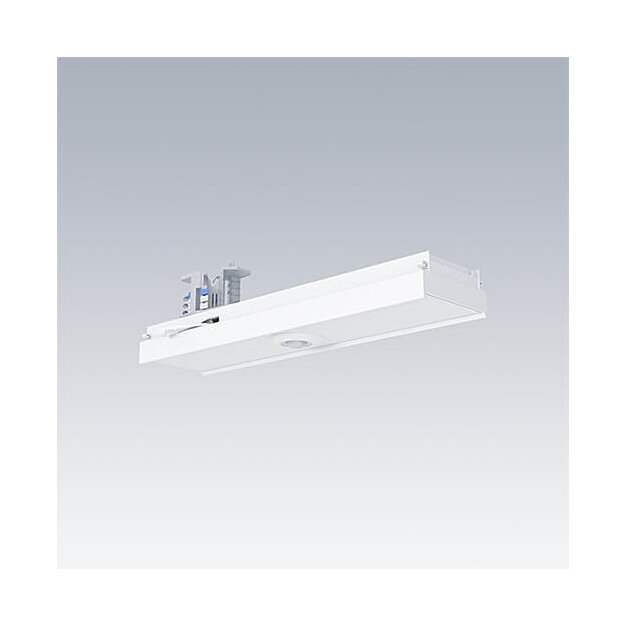

Thorn 96637157 CONTUS DALI-2 Multi Sensor MSENS MC CONT WH

Artikelnummer: 96637157 Thorn-96637157_9010757198258
Hersteller: Thorn
EAN: 9010757198258

UVP: 327,25 €

229,57 €

inkl. 19% USt. , zzgl.

lieferbar
Lieferzeit : 1-2 Wochen

DALI-2 Multi Sensor for motion detection and ambient light detection for connection to DALI-2 controllers. Optimized for industrial, education and office applications. Motion detection (DALI Part 303) is via PIR technology. Standard light measurement (DALI Part 304) between 5 and 2000lx possible, minimum value can be reduced to 0.5lx. DALI-2 sensor, compatible with all DALI-2 application controllers that support DALI Part 303 and 304, such as LITECOM DALI-2 and DIMLITE pro. Also for use and combination with BC CONT modules. One sensor requires 5 DALI loads (9mA). For sensor heights up to 8m. Detection radius for motion is 4.5m at a mounting height of 8m. Sensor lens made of polyethylene (PE), sensor housing made of polycarbonate (PS), CONTUS adapter made of sheet steel, pre-painted in polyester lacquer finish in. With included shield to reduce the PIR detection range by 120°, the shutter has no effect on the light measurement. ambient temperature: -20°C to +45°C Weight: 0.31 kg

Weitere Informationen

Hersteller-Farbe:	Weiß
Produktgruppe:	Elektrisches Zubehör/Ersatzteile für Leuchten
Farbe:

Technische Daten und Merkmale zu Thorn 96637157 CONTUS DALI-2 Multi Sensor MSENS MC CONT WH:

Art des Zubehörs/Ersatzteils	Bewegungsmelder
Farbe	Weiß

Herstellerinformation

Zumtobel Group Deutschland GmbH
Grevenmarschstr. 74-78
32657 Lemgo
Deutschland
info.de@zumtobelgroup.com

⚠ Sicherheitsinformation

Installation von nicht steckerfertigen elektrischen Geräten nur durch Personen mit einschlägigen elektrotechnischen Kenntnissen und Erfahrungen!
Für weitere Informationen zum Installationshinweis klicke hier.
